P. 967

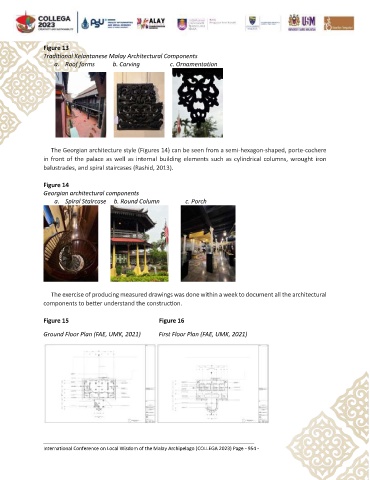

Figure 13
Traditional Kelantanese Malay Architectural Components
a. Roof forms b. Carving c. Ornamentation
The Georgian architecture style (Figures 14) can be seen from a semi-hexagon-shaped, porte-cochere
in front of the palace as well as internal building elements such as cylindrical columns, wrought iron
balustrades, and spiral staircases (Rashid, 2013).
Figure 14
Georgian architectural components
a. Spiral Staircase b. Round Column c. Porch
The exercise of producing measured drawings was done within a week to document all the architectural
components to better understand the construction.
Figure 15 Figure 16
Ground Floor Plan (FAE, UMK, 2021) First Floor Plan (FAE, UMK, 2021)
